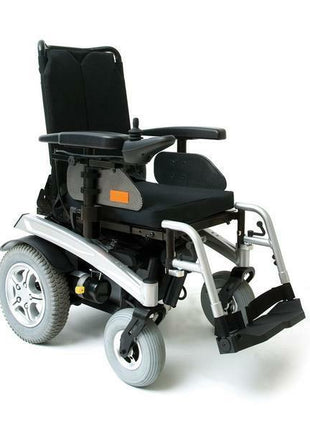

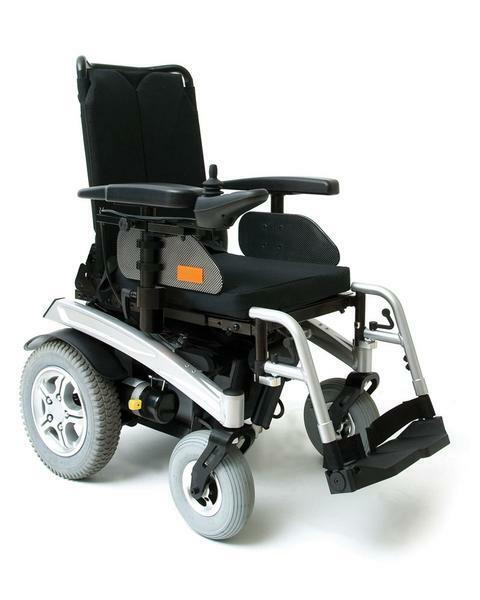

Description
Delivering high-performance, high efficiency motor package its unique design seting system is integrated with the base.
FEATURES
- Outstanding tight space manoeuvrability
- Maximum speed up to 10km/h
- High-performance, high efficiency motor package
- Unique design seating system is integrated with the base
- 4-pole motors
- Power tilt
SPECIFICATIONS
Weight capacity: 136kg
Maximum speed: Up to 10km/h
Ground clearance: 7.3cm
Turning radius: 96.5cm (with foot riggings)
Overall length: 89cm
Overall width: 63.5cm (at rear wheels)
Drive wheels: 35.5cm
Anti-tips: 7.6cm solid (rear)
Casters: 22.8cm pneumatic (front)
Drive train: Two-motor, rear-wheel drive
Braking system: Intelligent braking (electronic, regenerative disc brakes)
Standard electronics: 70 amp PG VR2 controller
Standard seat: Sling (seat integrated with base)
Battery charger: Off-board, 5 amp
Pre-charge range: Up to 26km
Battery requirements: (2) 12 volt deep-cycle
Battery size: 55 AH
Battery weight: 17.24kg each
Base weight: 47.6kg (without batteries)
Standard seat weight: N/A (seat is integrated with base)
Standard seating dimensions: 40.6cm x 45.7cm
