Description

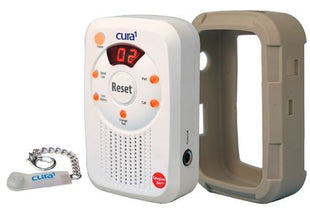

The Cura1 6 Channel Cordless Falls Monitor is simple to operate and maintain. With no more cords between monitor and pads, it can be used to monitor up to 6 cordless sensor pads or other triggering devices.
Features:
- Modern ergonomic design
- Monitor up to 7 devices simultaneously - a single Premium pad / mat and up to 6 wireless devices.
- Comes with durable ABS plastic enclosure and Caregiver Reset Key.
- Alarm memory and auto re-arm.
- Amber LED visual alarm indicator.
- Caregiver secure reset option.
- Battery operated or optional external plug pack.
- Up to 6 months battery life (nominal).
- Easy to access battery compartment.
- Can be connected to a nurse call system.
- 3 selectable alarm tones.
- Easy thumbwheel adjustable alarm volume.
- “Pause” feature allows a caregiver to attend to the patient without setting the alarm off.
- Alerts for lost nurse call connection, lost AC power supply & low battery.
Safety Features
- Non resettable “Pad Signal Lost” warning.
- Caregiver secure reset option.
- All safety alerts sound even if alarm volume set to silent, including low battery, AC lost, pad signal lost, nurse call lost & change pad.
- Cable strain relief & breakaway cord technology prevents damage & helps reduce the risk of entanglement when used with Premium Pads & Mats.
Technical Specifications:
- DC operation: using either a 3 x AA batteries or 6V plug pack
- Dimensions: 120 x 77 x 40mm
- Weight: 150g without batteries
- Up to 30m range when used with cordless bed pads and chair pads
- Fully user programmable
- Operating temperature: 5 - 40 degrees celcius, relative humidity < 85%
- 3 selectable alarm tones
- Operating frequency: 433Mhz fully supervised
- Volt free normally open relay contact alarm output
- RJ10 type socket for optional wired bed/chair pad or floor mat connection
- Low battery detection
- Missing AC/DC power supply detection and indication
Accesories:
- 3515 Cordless Under Mattress Pressure Pad
- 3516 Premium Under Mattress Pressure Pad
- 2662 Cordless Bed Pad & Transmitter
- 2661 Cordless Chair Pad & Transmitter
- 2663 Cordless Floor Mat & Transmitter
- 2719 Cordless Pad Transmitter
- 2629 Cordless Bed Pad
- 2630 Cordless Chair Pad
- 2626 Premium Bed Pad - 1 Year
- 2628 Premium Wheelchair / Chair Pad - 1 Year
- 2633 Premium Floor Mat - 1 Year
- 2636 Easy-release wheelchair / chair seatbelt
